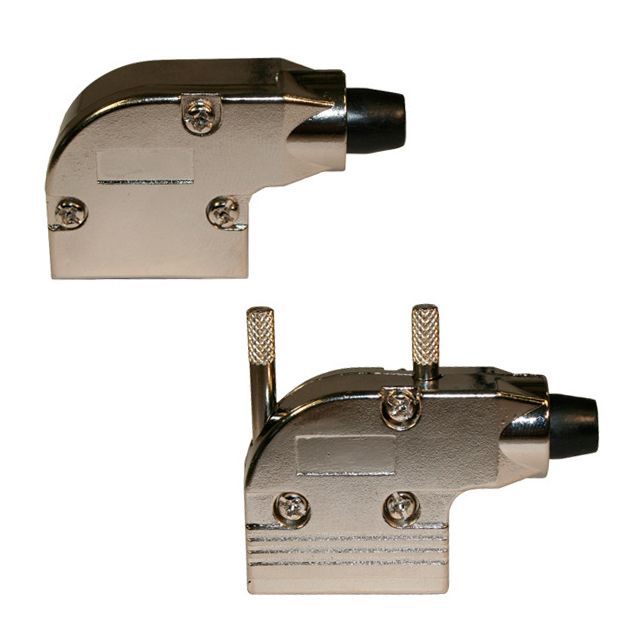

981 Series Right Angle D-Sub Backshell

Armor

Features

  • Right Angle D-Sub Backshell | Ethernet 90° Entry available in:
    • Standard (9 pin, 15 pin, 25 pin) or High Density (15 pin, 26 pin, 44 pin)
  • Available in die cast for over 70 dB shielding.
  • Easy backshell assembly reduces manufacturing cost.
  • Non-conductive grommet/strain relief supplied to enhance shielding and provide proper strain relief.
  • Slide locks and posts must be purchased separately.
    (See backshell hardware Section)
  • Search here for a full range of right angle d-sub connectors




Materials

  • Die Cast D-sub Backshell: Zinc Alloy IngotRoHS-LOGO.png
  • Plating: Nickel over copper
  • Hardware: Steel, nickel plating


Notes

Assembly Instructions Internal Dimensions Material Declarations:


Video: _JuDKRErJhg

Ethernet Right Angle D-Sub Backshell

Position

Part #

Material

Description

Data Sheet

IGES

STEP

3D PDF

9 Kit (15 H.D.) 981-009-030R121 Die Cast Right Angle
15 Kit (26 H.D.) 981-015-030R121 Die Cast Right Angle
25 Kit (44 H.D.) 981-025-030R121 Die Cast Right Angle
9 Kit (15 H.D.) 981-009-130R121 Die Cast Right Angle with Thumbscrews
15 Kit (26 H.D.) 981-015-130R121 Die Cast Right Angle with Thumbscrews
25 Kit (44 H.D.) 981-025-130R121 Die Cast Right Angle with Thumbscrews
25 Kit (44 H.D.) 981-025-033R121 Die Cast 13mm Cable Diameter N/A N/A N/A

981 Series (13mm Cable Diameter)

25 Kit (44 H.D.) 981-025-033R121

Right Angle D-Sub Backshell Hardware

Slide Lock For 9 Position 160-009-002R031 Must be Purchased Separately
Slide Lock For 15 Position 160-015-003R031 Must be Purchased Separately
Slide Lock For 25 Position 160-025-004R031 Must be Purchased Separately
Slide Lock For 37 Position 160-037-005R031 Must be Purchased Separately
Slide Lock Posts 160-000-005R031 Must be Purchased Separately
