Right Angle D-Sub Header

Right Angle D-Sub

View a full range of right angle d-sub connectors in various footprint sizing, machined & stamped contacts available in both standard & high density pin positions.

Right Angle

Standard D-Sub

Series

Description

173-E Series

173-E Series D-Sub Connector
Standard D-Sub | Right Angle .283" Footprint | Machined | Economy

174-E Series

db9 connector | Right Angle D-Sub Connector | 174-E Series
Standard D-Sub | Right Angle .370" Footprint | Machined | Economy

182 Series

Right Angle D-Sub Connectors | 182 Series
Standard D-Sub | Right Angle .318" footprint | Stamped | Economy

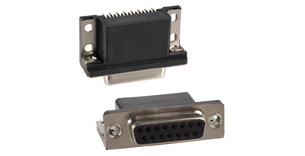

183 Series

183 Series
Right Angle D-Sub Connectors .590" footprint | Stamped | Economy

190/200 Series

200 Series Thumbnail
Standard & HD D-Subs | SMT Right Angle & RA Zero Footprint Through Hole

999 Series VG / HD Combo

Standard VGA over Dual PS/2 ports
VGA over Dual PS/2 ports - Stamped Contacts

Dual-Port D-Sub

Series

Description

Standard Density

High Density

178 Series

178 Series D-Sub Dual Port Connector
Dual-Port D-Sub | .750" Centers check check

179 Series

179 Series D-Sub Dual Port Connector
Dual-Port D-Sub | .900" Centers check

189 Series

189 Series D-Sub Dual Port Connectors
Dual-Port D-Sub | .625" Centers check check

High Density D-Sub

Series

Description

178 Series

178 Series D-Sub Dual Port Connector
Dual-Port D-Sub | .750" Centers

181 Series

181 Series D-Sub Connectors
High Density D-Sub | Right Angle .350" footprint | Stamped

181-M Series

181 Series D-Sub Connectors
High Density D-Sub | Right Angle .350" Footprint | Machined

189 Series

189 Series D-Sub Dual Port Connectors
Dual-Port D-Sub | .625" Centers

190/200 Series

200 Series Thumbnail
Standard & HD D-Subs | SMT Right Angle & RA Zero Footprint Through Hole

193 Series

193 Series D-Sub Connectors
High Density D-Sub | Right Angle 0.125" Footprint | Stamped


Right Angle D-Sub Connector | Applications

The right angle d-sub is an ideal connector solution for applications where space is at a premium and there is little to no room for connectivity & cabling. The 90­­° angle cable exit allows for increased mounting options and versatility of design for those tighter, more compact application needs such as computer servers and industrial robotics.
