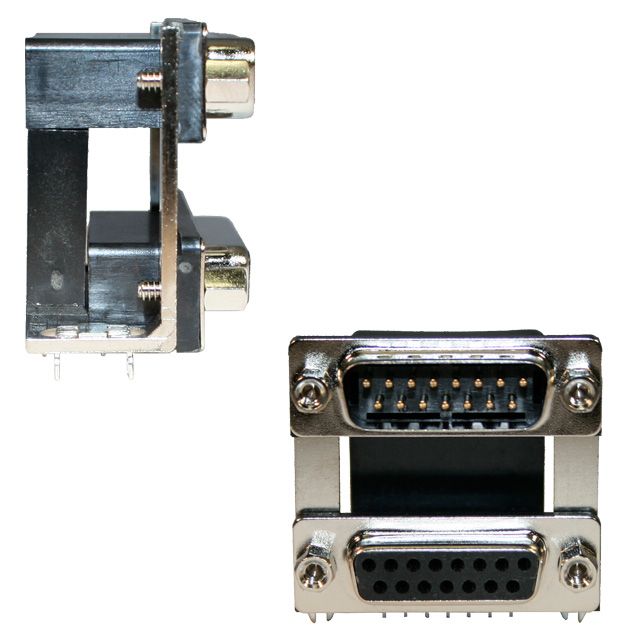

179 Series Right Angle Dual Port D-Sub | .900 Spacing

Stacked D-Sub

Features

  • Dual port d-subs available in 4 industry sizes/positions:
    • Standard Density (9 pin, 15 pin, 25 pin, 37 pin)
  • Low cost, high performance stamped contacts.
  • Stacked d-sub provides proper mating while maximizing board space.
  • Nickel plated shells have ground indents to provide better grounding & retention.
  • Metal shell for improved shielding.
  • Fully intermateable with other d-sub connectors.


Materials

  • Shell: Steel, nickel plating
  • Insulator: Glass-filled thermoplastic, U.L. rated 94V-O
    (260°C process temp)rohs-logo_3.png
  • Stamped contacts: Brass | Plating: Gold flash


Notes

Panel Cutout: Material Declarations:



Dual Port D-Sub | .900" Centers

Position

Part #

Data Sheet

Gender

Hardware Type

IGES

STEP

3D PDF

9 179-009-313R691 Female/Male 4-40 flush insert/board locks rear holes
15 179-015-313R691 Female/Male 4-40 flush insert/board locks rear holes
25 179-025-313R691 Female/Male 4-40 flush insert/board locks rear holes
37 179-037-313R691 Female/Male 4-40 flush insert/board locks rear holes
9 179-009-313R671 Female/Male 4-40 hex standoffs/board locks rear holes
15 179-015-313R671 Female/Male 4-40 hex standoffs/board locks rear holes
25 179-025-313R671 Female/Male 4-40 hex standoffs/board locks rear holes
37 179-037-313R671 Female/Male 4-40 hex standoffs/board locks rear holes
9 179-009-313R491 Female/Male 4-40 flush insert/fork board locks
15 179-015-313R491 Female/Male 4-40 flush insert/fork board locks
25 179-025-313R491 Female/Male 4-40 flush insert/fork board locks
37 179-037-313R491 Female/Male 4-40 flush insert/fork board locks
9 179-009-313R571 Female/Male 4-40 hex standoffs/fork board locks
15 179-015-313R571 Female/Male 4-40 hex standoffs/fork board locks
25 179-025-313R571 Female/Male 4-40 hex standoffs/fork board locks
37 179-037-313R571 Female/Male 4-40 hex standoffs/fork board locks
9 179-009-313R451 Female/Male 4-40 flush inserts/metal bracket
15 179-015-313R451 Female/Male 4-40 flush inserts/metal bracket
25 179-025-313R451 Female/Male 4-40 flush inserts/metal bracket
37 179-037-313R451 Female/Male 4-40 flush inserts/metal bracket
9 179-009-313R481 Female/Male 4-40 hex standoffs/metal bracket
15 179-015-313R481 Female/Male 4-40 hex standoffs/metal bracket
25 179-025-313R481 Female/Male 4-40 hex standoffs/metal bracket
37 179-037-313R481 Female/Male 4-40 hex standoffs/metal bracket
9 179-009-413R691 Male/Female 4-40 flush insert/board locks rear holes
15 179-015-413R691 Male/Female 4-40 flush insert/board locks rear holes
25 179-025-413R691 Male/Female 4-40 flush insert/board locks rear holes
37 179-037-413R691 Male/Female 4-40 flush insert/board locks rear holes
9 179-009-413R671 Male/Female 4-40 hex standoffs/board locks rear holes
15 179-015-413R671 Male/Female 4-40 hex standoffs/board locks rear holes
25 179-025-413R671 Male/Female 4-40 hex standoffs/board locks rear holes
37 179-037-413R671 Male/Female 4-40 hex standoffs/board locks rear holes
9 179-009-413R491 Male/Female 4-40 flush insert/fork board locks
15 179-015-413R491 Male/Female 4-40 flush insert/fork board locks
25 179-025-413R491 Male/Female 4-40 flush insert/fork board locks
37 179-037-413R491 Male/Female 4-40 flush insert/fork board locks
9 179-009-413R571 Male/Female 4-40 hex standoffs/fork board locks
15 179-015-413R571 Male/Female 4-40 hex standoffs/fork board locks
25 179-025-413R571 Male/Female 4-40 hex standoffs/fork board locks
37 179-037-413R571 Male/Female 4-40 hex standoffs/fork board locks
9 179-009-413R451 Male/Female 4-40 flush inserts/metal bracket
15 179-015-413R451 Male/Female 4-40 flush inserts/metal bracket
25 179-025-413R451 Male/Female 4-40 flush inserts/metal bracket
37 179-037-413R451 Male/Female 4-40 flush inserts/metal bracket
9 179-009-413R481 Male/Female 4-40 hex standoffs/metal bracket
15 179-015-413R481 Male/Female 4-40 hex standoffs/metal bracket
25 179-025-413R481 Male/Female 4-40 hex standoffs/metal bracket
37 179-037-413R481 Male/Female 4-40 hex standoffs/metal bracket
9 179-009-513R691 Female/Female 4-40 flush insert/board locks rear holes
15 179-015-513R691 Female/Female 4-40 flush insert/board locks rear holes
25 179-025-513R691 Female/Female 4-40 flush insert/board locks rear holes
37 179-037-513R691 Female/Female 4-40 flush insert/board locks rear holes
9 179-009-513R671 Female/Female 4-40 hex standoffs/board locks rear holes
15 179-015-513R671 Female/Female 4-40 hex standoffs/board locks rear holes
25 179-025-513R671 Female/Female 4-40 hex standoffs/board locks rear holes
37 179-037-513R671 Female/Female 4-40 hex standoffs/board locks rear holes
9 179-009-513R491 Female/Female 4-40 flush insert/fork board locks
15 179-015-513R491 Female/Female 4-40 flush insert/fork board locks
25 179-025-513R491 Female/Female 4-40 flush insert/fork board locks
37 179-037-513R491 Female/Female 4-40 flush insert/fork board locks
9 179-009-513R571 Female/Female 4-40 hex standoffs/fork board locks
15 179-015-513R571 Female/Female 4-40 hex standoffs/fork board locks
25 179-025-513R571 Female/Female 4-40 hex standoffs/fork board locks
37 179-037-513R571 Female/Female 4-40 hex standoffs/fork board locks
9 179-009-513R451 Female/Female 4-40 flush inserts/metal bracket
15 179-015-513R451 Female/Female 4-40 flush inserts/metal bracket
25 179-025-513R451 Female/Female 4-40 flush inserts/metal bracket
37 179-037-513R451 Female/Female 4-40 flush inserts/metal bracket
9 179-009-513R481 Female/Female 4-40 hex standoffs/metal bracket
15 179-015-513R481 Female/Female 4-40 hex standoffs/metal bracket
25 179-025-513R481 Female/Female 4-40 hex standoffs/metal bracket
37 179-037-513R481 Female/Female 4-40 hex standoffs/metal bracket
9 179-009-613R691 Male/Male 4-40 flush insert/board locks rear holes
15 179-015-613R691 Male/Male 4-40 flush insert/board locks rear holes
25 179-025-613R691 Male/Male 4-40 flush insert/board locks rear holes
37 179-037-613R691 Male/Male 4-40 flush insert/board locks rear holes
9 179-009-613R671 Male/Male 4-40 hex standoffs/board locks rear holes
15 179-015-613R671 Male/Male 4-40 hex standoffs/board locks rear holes
25 179-025-613R671 Male/Male 4-40 hex standoffs/board locks rear holes
37 179-037-613R671 Male/Male 4-40 hex standoffs/board locks rear holes
9 179-009-613R491 Male/Male 4-40 flush insert/fork board locks
15 179-015-613R491 Male/Male 4-40 flush insert/fork board locks
25 179-025-613R491 Male/Male 4-40 flush insert/fork board locks
37 179-037-613R491 Male/Male 4-40 flush insert/fork board locks
9 179-009-613R571 Male/Male 4-40 hex standoffs/fork board locks
15 179-015-613R571 Male/Male 4-40 hex standoffs/fork board locks
25 179-025-613R571 Male/Male 4-40 hex standoffs/fork board locks
37 179-037-613R571 Male/Male 4-40 hex standoffs/fork board locks
9 179-009-613R451 Male/Male 4-40 flush inserts/metal bracket
15 179-015-613R451 Male/Male 4-40 flush inserts/metal bracket
25 179-025-613R451 Male/Male 4-40 flush inserts/metal bracket
37 179-037-613R451 Male/Male 4-40 flush inserts/metal bracket
9 179-009-613R481 Male/Male 4-40 hex standoffs/metal bracket
15 179-015-613R481 Male/Male 4-40 hex standoffs/metal bracket
25 179-025-613R481 Male/Male 4-40 hex standoffs/metal bracket
37 179-037-613R481 Male/Male 4-40 hex standoffs/metal bracket

Request samples or contact us directly for any custom or semi custom stacked d-sub connector project. Low MOQ's and short lead times.
