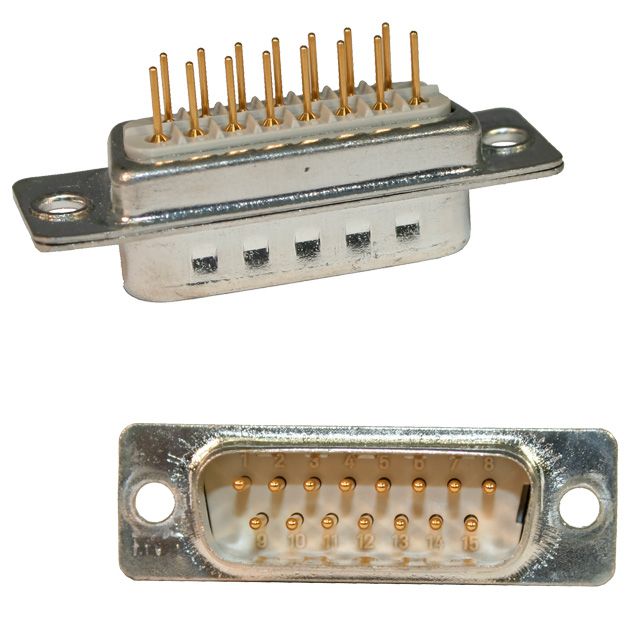

172 Series Dip Solder Dip Solder D-Sub Connector

M Series

Features

  • Dip solder d-sub connectors available in 5 industry sizes/positions
    • Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin)
  • Nickel shells have indents to provide grounding and additional retention.
  • Screw machined contacts offer high reliability. Non-removable contacts.
  • Optional mounting hardware available


Materials

  • Shell: Steel, nickel plated
  • Insulator: Glass-filled thermoplastic. U.L. rated 94V-O
    (260°C process temp)rohs-logo_3.png
  • Machined contacts: Male pins - Brass | Female pins - Brass
  • Plating: Gold flash on entire contact
    • (contact us for other plating options)


Notes

* For high volume applications see link here: 172-E

Panel Cutout: Mating Cycles: Material Declarations:



Standard Straight D-Sub Connectors | Machined Contacts

Position

Part #

Shell

Gender

Data Sheet

STEP

3D PDF

9 172-009-113R001 Nickel Male
9 172-009-113R011 Nickel Male
9 172-009-113R021 Nickel Male
9 172-009-113R031 Nickel Male
9 172-009-113R051 Nickel Male
9 172-009-113R911 Nickel Male
9 172-009-213R001 Nickel Female
9 172-009-213R011 Nickel Female
9 172-009-213R021 Nickel Female
9 172-009-213R031 Nickel Female
9 172-009-213R051 Nickel Female
9 172-009-213R911 Nickel Female
15 172-015-113R001 Nickel Male
15 172-015-113R011 Nickel Male
15 172-015-113R021 Nickel Male
15 172-015-113R031 Nickel Male
15 172-015-113R051 Nickel Male
15 172-015-113R911 Nickel Male
15 172-015-213R001 Nickel Female
15 172-015-213R011 Nickel Female
15 172-015-213R021 Nickel Female
15 172-015-213R031 Nickel Female
15 172-015-213R051 Nickel Female
15 172-015-213R911 Nickel Female
25 172-025-113R001 Nickel Male
25 172-025-113R011 Nickel Male
25 172-025-113R021 Nickel Male
25 172-025-113R031 Nickel Male
25 172-025-113R051 Nickel Male
25 172-025-113R911 Nickel Male
25 172-025-213R001 Nickel Female
25 172-025-213R011 Nickel Female
25 172-025-213R021 Nickel Female
25 172-025-213R031 Nickel Female
25 172-025-213R051 Nickel Female
25 172-025-213R911 Nickel Female
37 172-037-113R001 Nickel Male
37 172-037-113R011 Nickel Male
37 172-037-113R021 Nickel Male
37 172-037-113R031 Nickel Male
37 172-037-113R051 Nickel Male
37 172-037-113R911 Nickel Male
37 172-037-213R001 Nickel Female
37 172-037-213R011 Nickel Female
37 172-037-213R021 Nickel Female
37 172-037-213R031 Nickel Female
37 172-037-213R051 Nickel Female
37 172-037-213R911 Nickel Female
50 172-050-113R001 Nickel Male
50 172-050-113R011 Nickel Male
50 172-050-113R021 Nickel Male
50 172-050-113R031 Nickel Male
50 172-050-113R051 Nickel Male
50 172-050-113R911 Nickel Male
50 172-050-213R001 Nickel Female
50 172-050-213R011 Nickel Female
50 172-050-213R021 Nickel Female
50 172-050-213R031 Nickel Female
50 172-050-213R051 Nickel Female
50 172-050-213R911 Nickel Female
9 172-009-112Ryy1 Tin Male
9 172-009-212Ryy1 Tin Female
15 172-015-112Ryy1 Tin Male
15 172-015-212Ryy1 Tin Female
25 172-025-112Ryy1 Tin Male
25 172-025-212Ryy1 Tin Female
37 172-037-112Ryy1 Tin Male
37 172-037-212Ryy1 Tin Female
50 172-050-112Ryy1 Tin Male
50 172-050-212Ryy1 Tin Female

Request samples or contact us directly for any custom or semi custom dip solder d-sub connector project. Low MOQ's and short lead times.
