METAL & PLASTIC SHELL CIRCULAR PUSH PULL CONNECTORS

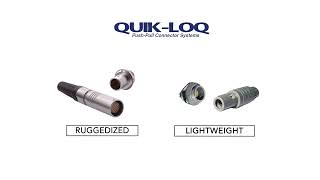

QUIK-LOQ Push-Pull Circular Connectors deliver a compact high performance solution engineered to withstand shock and high vibration both indoors and outdoors in harsh environments. These rugged, sealed connectors are ideal for hi-rel waterproof applications where quick connect / disconnect and environmental protection are required.


Vertical Markets:

FEATURES & BENEFITS

  • Push-Pull Latch and Release Mechanism
  • Small, rugged precision design
  • Available in varying pin positions
  • Accepts 22-28 awg wires (based on # of positions)
  • Rated for 2 to 30 amps depending on # of positions
  • High Mating Cycles (>5000)
  • Machined contacts and housing-
  • 360° shielding for full EMI / RFI

IP50 Rated

  • 820B Product Family
    • 9mm small size / footprint - Fully shielded solution
    • Quick mate, quick release
    • 2, 3, 4, 5, 6, 7 and 9 positions
    • 22-28 AWG 2-10 Amps -40°C - +85°C
  • 821B Product Family
    • 12mm intermediate Size - Greater power capability
    • Quick mate, quick release
    • 2, 3, 4, 5, 6, 7, 8, 10 and 14 positions
    • 20-28 AWG | 2-15 Amps | -40°C - +85°C
  • 822B Product Family
    • 15mm larger size – increased pin count and power capability
    • Quick mate, quick release
    • 2, 3, 4, 6, 8, 10, 12, 14, 16, 19 and 26 positions
    • 14-28 AWG | 2-10 Amps | -40°C - +85°C

IP67 Rated

  • 820K Product Family
    • 9mm small size / footprint - Fully shielded solution
    • Quick mate, quick release
    • 2, 3, 4, 5, 6, 7 and 9 positions
    • 22-28 AWG 2-10 Amps -40C - +85C
  • 821K Product Family
    • 12mm intermediate Size - Greater power capability
    • Quick mate, quick release
    • 2, 3, 4, 5, 6, 7, 8, 10 and 14 positions
    • 20-28 AWG 2-15 Amps -40C - +85C
  • 822K Product Family
    • 15mm larger size – increased pin count and power capability
    • Quick mate, quick release
    • 2, 3, 4, 6, 8, 10, 12, 14, 16, 19 and 26 positions
    • 14-28 AWG 2-17 Amps -40C - +85C
