M12 Connector Series | A | B | D | K | L | S | T | X | Coded | M12 Series
Features
- M12 connector pin configurations: 3 pin, 4 pin, 5 pin, 6 pin, 8 pin, 12 pin, 17 pin
- Non-removable Contacts
- Meets IP67/IP68 water proof requirements
- M12 X-Code connectors passed Cat6A testing within customer applications
- -40°C to +85°C Temperature Range
- Available as loose piece or as pre-made M12 cables
Materials
- SHELL: Brass-Nickel Plated or Stainless Steel
- INSULATOR: PBT-Black, UL94 V-0 (Other materials available)
- CONTACTS: Brass, Gold Plated
- NUT: Brass-Nickel Plated
- O-RING: EPDM, Silicone, NBR
Notes
- M5 & M8 Connectors also available.
- Recommended mating torque: 3.25-5.00 in-lbs [0.42-0.56 Nm]
- Recommended panel mount nut assembly torque: 10.00-15.00 in-lbs [1.13-1.69 Nm]
- Recommended assembly torque (connector components): 10.00-15.00 in-lbs [1.13-1.69 Nm]
M12 Connector Series | A | B | D | K | L | S | T | X | Coded
Position |
Part # |
Code |
Gender |
Type |
Shield |
Contact |
Data Sheet |
STEP |
3D PDF |
|---|---|---|---|---|---|---|---|---|---|
| 3 | 858-003-103RKT4 | A | Male | Cable Kit | Shielded | Solder Cup | |||
| 3 | 858-003-203RKTY | A | Female | Cable Kit | Shielded | Solder Cup | |||
| 3 | 858-L03-203RKT4 | A | Female | Cable Kit | Shielded | Solder Cup | |||
| 3 | 858-003-103RLUY | A | Male | Cable Mount | Unshielded | Solder Cup | |||
| 3 | 858-R03-103RLUY | A | Male | Cable Mount | Unshielded | Solder Cup | |||
| 3 | 858-R03-103RSS4 | A | Male | Cable Mount | Shielded | Solder Cup | |||
| 3 | 858-003-203RSUY | A | Female | Cable Mount | Unshielded | Solder Cup | |||
| 3 | 858-003-203RLSY | A | Female | Cable Mount | Shielded | Solder Cup | |||
| 3 | 858-R03-203RSU4 | A | Female | Cable Mount | Unshielded | Solder Cup | |||
| 3 | 858-R03-203RSS4 | A | Female | Cable Mount | Shielded | Solder Cup | |||
| 4 | 858-004-103RKTY | A | Male | Cable Kit | Shielded | Solder Cup | |||
| 4 | 858-004-203RKTY | A | Female | Cable Kit | Shielded | Solder Cup | |||
| 4 | 858-004-103RLUY | A | Male | Cable Mount | Unshielded | Solder Cup | |||
| 4 | 858-004-103RSSY | A | Male | Cable Mount | Shielded | Solder Cup | |||
| 4 | 858-004-203RLSY | A | Female | Cable Mount | Shielded | Solder Cup | |||
| 4 | 858-004-203RSUY | A | Female | Cable Mount | Unshielded | Solder Cup | |||
| 5 | 858-005-103RKTY | A | Male | Cable Kit | Shielded | Solder Cup | |||
| 5 | 858-005-103RLUY | A | Male | Cable Mount | Unshielded | Solder Cup | |||
| 5 | 858-005-203RKTY | A | Female | Cable Kit | Shielded | Solder Cup | |||
| 5 | 858-005-103RSSY | A | Male | Cable Mount | Shielded | Solder Cup | |||
| 5 | 858-005-203RLSY | A | Female | Cable Mount | Shielded | Solder Cup | |||
| 5 | 858-005-203RSUY | A | Female | Cable Mount | Unshielded | Solder Cup | |||
| 6 | 858-006-103RKTY | A | Male | Cable Kit | Shielded | Solder Cup | |||
| 6 | 858-006-103RLU4 | A | Male | Cable Mount | Unshielded | Solder Cup | |||
| 6 | 858-006-103RSS4 | A | Male | Cable Mount | Shielded | Solder Cup | |||
| 7 | 858-007-103RKT1 | A | Male | Cable Kit | Shielded | Solder Cup | |||
| 7 | 858-007-103RKT4 | A | Male | Cable Kit | Shielded | Solder Cup | |||
| 8 | 858-008-103RKTY | A | Male | Cable Kit | Shielded | Solder Cup | |||
| 8 | 858-008-203RKTY | A | Female | Cable Kit | Shielded | Solder Cup | |||
| 8 | 858-008-103RLSY | A | Male | Cable Mount | Shielded | Solder Cup | |||
| 8 | 858-008-103RLU4 | A | Male | Cable Mount | Unshielded | Solder Cup | |||
| 8 | 858-008-103RSSY | A | Male | Cable Mount | Shielded | Solder Cup | |||
| 8 | 858-008-203RLSY | A | Female | Cable Mount | Shielded | Solder Cup | |||
| 8 | 858-008-203RSUY | A | Female | Cable Mount | Unshielded | Solder Cup | |||
| 12 | 858-012-103RKTY | A | Male | Cable Kit | Shielded | Solder Cup | |||
| 12 | 858-012-203RKTY | A | Female | Cable Kit | Shielded | Solder Cup | |||
| 12 | 858-012-103RLSY | A | Male | Cable Mount | Shielded | Solder Cup | |||
| 12 | 858-012-103RLUY | A | Male | Cable Mount | Unshielded | Solder Cup | |||
| 12 | 858-012-203RSSY | A | Female | Cable Mount | Shielded | Solder Cup | |||
| 12 | 858-012-203RSUY | A | Female | Cable Mount | Unshielded | Solder Cup | |||
| 17 | 858-017-103RKT4 | A | Male | Cable Kit | Shielded | Solder Cup | |||
| 17 | 858-017-203RKT4 | A | Female | Cable Kit | Shielded | Solder Cup | |||
| 17 | 858-017-103RSS4 | A | Male | Cable Mount | Shielded | Solder Cup | |||
| 17 | 858-017-103RSU4 | A | Male | Cable Mount | Unshielded | Solder Cup | |||
| 17 | 858-017-203RSS4 | A | Female | Cable Mount | Shielded | Solder Cup | |||
| 17 | 858-017-203RSU4 | A | Female | Cable Mount | Unshielded | Solder Cup | |||
| 4 | 858-B04-103RKT4 | B | Male | Cable Kit | Shielded | Solder Cup | |||
| 4 | 858-B04-203RKT4 | B | Female | Cable Kit | Shielded | Solder Cup | |||
| 4 | 858-B04-103RLU4 | B | Male | Cable Mount | Unshielded | Solder Cup | |||
| 4 | 858-B04-103RSS4 | B | Male | Cable Mount | Shielded | Solder Cup | |||
| 4 | 858-B04-203RLS4 | B | Female | Cable Mount | Shielded | Solder Cup | |||
| 4 | 858-B04-203RSU4 | B | Female | Cable Mount | Unshielded | Solder Cup | |||
| 5 | 858-B05-103RKT4 | B | Male | Cable Kit | Shielded | Solder Cup | |||
| 5 | 858-B05-203RKT4 | B | Female | Cable Kit | Shielded | Solder Cup | |||
| 5 | 858-B05-103RLU4 | B | Male | Cable Mount | Unshielded | Solder Cup | |||
| 5 | 858-B05-103RLS4 | B | Male | Cable Mount | Shielded | Solder Cup | |||
| 5 | 858-B05-203RLS4 | B | Female | Cable Mount | Shielded | Solder Cup | |||
| 5 | 858-B05-203RSU4 | B | Female | Cable Mount | Unshielded | Solder Cup | |||
| 4 | 858-D04-103RKTY | D | Male | Cable Kit | Shielded | Solder Cup | |||
| 4 | 858-D04-203RKTY | D | Female | Cable Kit | Shielded | Solder Cup | |||
| 4 | 858-D04-103RSSY | D | Male | Cable Mount | Shielded | Solder Cup | |||
| 4 | 858-D04-103RSUY | D | Male | Cable Mount | Unshielded | Solder Cup | |||
| 4 | 858-D04-203RSSY | D | Female | Cable Mount | Shielded | Solder Cup | |||
| 4 | 858-D04-203RSUY | D | Female | Cable Mount | Unshielded | Solder Cup | |||
| 5 | 858-K05-103RLU4 | K | Male | Cable Mount | Unshielded | Solder Cup | |||
| 5 | 858-K05-203RLU4 | K | Female | Cable Mount | Unshielded | Solder Cup | |||
| 5 | 858-LP5-103RKT4 | L | Male | Cable Kit | Shielded | Solder Cup | |||
| 5 | 858-LP5-203RKT4 | L | Female | Cable Kit | Shielded | Solder Cup | |||
| 5 | 858-LP5-103RLS4 | L | Male | Cable Mount | Shielded | Solder Cup | |||
| 5 | 858-LP5-203RLS4 | L | Female | Cable Mount | Shielded | Solder Cup | |||

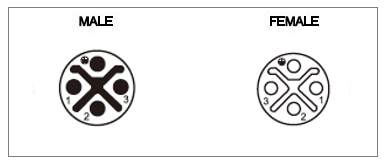

| 3 | 858-SP3-103RLU4 | S | Male | Cable Mount | Unshielded | Solder Cup | |||
| 3 | 858-SP3-203RLU4 | S | Female | Cable Mount | Unshielded | Solder Cup | |||
| 4 | 858-T04-103RLU4 | T | Male | Cable Mount | Unshielded | Solder Cup | |||
| 4 | 858-T04-203RLU4 | T | Female | Cable Mount | Unshielded | Solder Cup | |||
| 3 | 858VA03-103RLU4 | A | Male | Anti-Vibration | Unshielded | Solder Cup | |||
| 3 | 858VA03-203RLU4 | A | Female | Anti-Vibration | Unshielded | Solder Cup | |||
| 4 | 858VA04-103RLU4 | A | Male | Anti-Vibration | Unshielded | Solder Cup | |||
| 4 | 858VA04-103RLS4 | A | Male | Anti-Vibration | Shielded | Solder Cup | |||
| 4 | 858VA04-203RLU4 | A | Female | Anti-Vibration | Unshielded | Solder Cup | |||
| 5 | 858VA05-103RLS4 | A | Male | Anti-Vibration | Shielded | Solder Cup | |||
| 5 | 858VA05-103RLU4 | A | Male | Anti-Vibration | Unshielded | Solder Cup | |||
| 5 | 858VA05-203RLS4 | A | Female | Anti-Vibration | Shielded | Solder Cup | |||
| 5 | 858VA05-203RLU4 | A | Female | Anti-Vibration | Unshielded | Solder Cup | |||
| 8 | 858VA08-103RSS4 | A | Male | Anti-Vibration | Shielded | Solder Cup | |||
| 8 | 858VA08-103RLU4 | A | Male | Anti-Vibration | Unshielded | Solder Cup | |||
| 8 | 858VA08-203RLU4 | A | Female | Anti-Vibration | Unshielded | Solder Cup | |||
| 4 | 858VD04-103RSS4 | D | Male | Anti-Vibration | Shielded | Solder Cup | |||
| 8 | 858VX08-103RLS4 | X | Male | Anti-Vibration | Shielded | Solder Cup | |||
| 8 | 858-X08-103RKT4 | X | Male | Cable Kit | Shielded | Solder Cup | |||
| 8 | 858-XR8-103RKT4 | X | Male | Cable Kit | Shielded | Solder Cup | |||
| 8 | 858-XY8-103RLSY | X | Male | Cable Mount | Shielded | Solder Cup | |||
| 8 | 858-XY8-203RLSY | X | Female | Cable Mount | Shielded | Solder Cup | |||
| 3 | 859-003-103R00Y | A | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 3 | 859-R03-103R00Y | A | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 3 | 859-003-203R00Y | A | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 3 | 859-L03-203R00Y | A | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 4 | 859-004-103R00Y | A | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 4 | 859-004-103R0M4 | A | Male | Front Panel Mount | Shielded | Solder Cup | |||
| 4 | 859-004-203R00Y | A | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 4 | 859-004-203R2F4 | A | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 5 | 859-005-103R00Y | A | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 5 | 859-005-103RP94 | A | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 5 | 859-005-203R00Y | A | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 5 | 859-005-203R2F4 | A | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 6 | 859-006-203R004 | A | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 8 | 859-008-103R00Y | A | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 8 | 859-008-203R00Y | A | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 8 | 859-008-203R2F4 | A | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 12 | 859-012-103R00Y | A | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 12 | 859-012-103R164 | A | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 12 | 859-012-203R00Y | A | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 17 | 859-017-103R004 | A | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 17 | 859-017-203R004 | A | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 4 | 859-B04-103R004 | B | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 4 | 859-B04-203R004 | B | Female | Front Panel Mount | Shielded | Solder Cup | |||
| 5 | 859-B05-103R004 | B | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 5 | 859-B05-203R004 | B | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 5 | 859-LP5-103R00Y | L | Male | Front Panel Mount | Shielded | Solder Cup | |||
| 5 | 859-LP5-203R00Y | L | Female | Front Panel Mount | Shielded | Solder Cup | |||
| 4 | 859RD04-103R00Y | D | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 4 | 859RD04-203R00Y | D | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 4 | 859RD04-203RMR4 | D | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 3 | 859-SP3-103R004 | S | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 3 | 859-SP3-203R004 | S | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 4 | 859-T04-103R004 | T | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 4 | 859-T04-203R004 | T | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 8 | 859-X08-103R004 | X | Male | Rear Panel Mount | Shielded | Solder Cup | |||
| 8 | 859-X08-203R004 | X | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 8 | 859-X08-203R0RY | X | Female | Rear Panel Mount | Shielded | Solder Cup | |||
| 3 | 860-003-113R00Y | A | Male | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 3 | 860-L03-113R00Y | A | Male | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 3 | 860-003-213R00Y | A | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 3 | 860-R03-213R00Y | A | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 4 | 860-004-113R00Y | A | Male | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 4 | 860-004-113RST4 | A | Male | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 4 | 860-004-213R00Y | A | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 4 | 860-004-213REM4 | A | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 5 | 860-005-113R00Y | A | Male | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 5 | 860-005-213R00Y | A | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 6 | 860-006-213R00Y | A | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 8 | 860-008-113R00Y | A | Male | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 8 | 860-008-213R00Y | A | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 12 | 860-012-113R00Y | A | Male | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 12 | 860-012-213R00Y | A | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 17 | 860-017-1G3R004 | A | Male | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 17 | 860-017-2G3R004 | A | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 4 | 860-B04-213R004 | B | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 5 | 860-B05-113R004 | B | Male | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 5 | 860-B05-2G3R004 | B | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 4 | 860RD04-113R00Y | D | Male | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 4 | 860-D04-113RST4 | D | Male | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 4 | 860RD04-213R00Y | D | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 5 | 860-LP5-113R00Y | L | Male | Front Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 5 | 860-LP5-113RR04 | L | Male | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 5 | 860-LP5-213R00Y | L | Female | Front Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 5 | 860-LP5-213RR04 | L | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 4 | 860-T04-113R004 | T | Male | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 4 | 860-T04-213R004 | T | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 8 | 860-X08-213R004 | X | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 8 | 860-X08-213R0RY | X | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 8 | 860-X08-2D3R0R4 | X | Female | Rear Panel Mount | Shielded | PCB Straight Dip Solder | |||
| 3 | 861-003-113R00Y | A | Male | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 3 | 861-R03-113R00Y | A | Male | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 3 | 861-003-213R00Y | A | Female | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 3 | 861-L03-213R00Y | A | Female | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 4 | 861-004-113R00Y | A | Male | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 4 | 861-004-213R00Y | A | Female | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 5 | 861-005-113R00Y | A | Male | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 5 | 861-005-213R00Y | A | Female | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 8 | 861-008-113R00Y | A | Male | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 8 | 861-008-213R00Y | A | Female | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 5 | 861-B05-213R004 | B | Female | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 4 | 861-D04-113R00Y | D | Male | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 4 | 861-D04-213R00Y | D | Female | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 8 | 861-X08-213R0R4 | X | Female | Rear Panel Mount | Shielded | PCB Right Angle Dip Solder | |||
| 3 | 862-003-113R001 | A | Male | Two Piece PCB | Shielded | PCB Straight Dip Solder | |||
| 4 | 862-004-113R001 | A | Male | Two Piece PCB | Shielded | PCB Straight Dip Solder | |||
| 5 | 862-005-113R001 | A | Male | Two Piece PCB | Shielded | PCB Straight Dip Solder | |||
| 8 | 862-008-113R001 | A | Male | Two Piece PCB | Shielded | PCB Straight Dip Solder | |||
| 3 | 862-003-213R001 | A | Female | Two Piece PCB | Shielded | PCB Straight Dip Solder | |||
| 4 | 862-004-213R001 | A | Female | Two Piece PCB | Shielded | PCB Straight Dip Solder | |||
| 5 | 862-005-213R001 | A | Female | Two Piece PCB | Shielded | PCB Straight Dip Solder | |||
| 8 | 862-008-213R001 | A | Female | Two Piece PCB | Shielded | PCB Straight Dip Solder | |||
| 4 | 862-D04-113R001 | D | Male | Two Piece PCB | Shielded | PCB Straight Dip Solder | |||
| 4 | 862-D04-213R001 | D | Female | Two Piece PCB | Shielded | PCB Straight Dip Solder | |||
| 8 | 862-X08-213R001 | X | Female | Two Piece PCB | Shielded | PCB Straight Dip Solder | |||
| 12 | 862-012-213R001 | A | Female | Two Piece PCB | Shielded | PCB Straight Dip Solder | |||
| 862-M-SHELL | Male | Two Piece PCB | Shielded | ||||||
| 862-F-SHELL | Female | Two Piece PCB | Shielded | ||||||
| 858103P-DC | Male | Plastic Dust Cap | |||||||
| 858203M-DC | Female | Metal Dust Cap | |||||||
| 8582T3M-DC | Female | Metal Dust Cap |
M12 Connector Applications
The NorComp M12 connector system is used in a variety of harsh environments and demanding industrial applications. Many include industrial controls and automation such as remote process sensors, robotics control systems, ruggedized networking, & power conditioning systems.
M12 A Coded
Sensors & Actuators
M12 B Coded
Interbus & Profibus
M12 D Coded
EtherCat & Profinet
M12 K Coded
Power
M12 L Coded
Power / Profinet
M12 T Coded
DC Power
M12 S Coded
AC Power
M12 X Coded
10 Gbps Ethernet
Related Series
Categories
Products
- Circular Connectors & Cable Assemblies
- D-Sub Connectors
- IP67 D-Sub Connectors
- D-Sub Backshells
- Micro-D Connectors & Cable Assemblies
- Power-D & Combo Mixed Connectors
- Push Pull Connectors
- D-Sub & Micro D Hardware
- Modular RJ45 Connectors
- USB Connectors
- D-Sub Adapters & Gender Changers
- SCSI .085"/.050"
- .050 Ribbon
- Headers & Receptacles
- Bayonet Connectors
