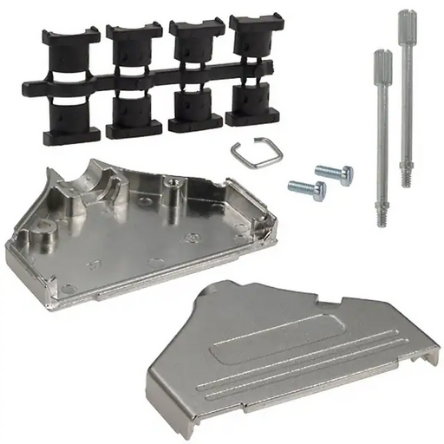

970 Series Straight/Top Entry Backshell

Armor

Features

  • Available in 4 industry sizes/positions (9, 15, 25, 37).
  • Straight/Top Entry.
  • Thumbscrews supplied with backshell.
  • More robust design for those areas that need it.
  • Fully tapped assembly holes allow easy assembly keeping manufacturing cost down.
  • 2 pc. grommet with various I.D.s included.
  • Perimeter sealing lips for secure assembly.
  • Available in die cast with 2 different platings, metalized plastic and plastic.


Materials

  • Die Cast: Lightweight Zinc
    Plating: Nickel over copper or black die cast
  • Metalized Plastic: High temperature plastic U.L. 94HB
    Plating: Nickel over copper
  • Plastic: High temperature plastic U.L. 94HB, Black
  • Hardware: Steel with nickel or black chromate




Notes

SEE PRODUCT NOTIFICATIONS HERE

PCN LETTER



Video: 2gE85RmlNNs

Assembly Instructions Internal Dimensions Material Declarations:

Extra Hardware

#4-40 ThumbScrew 970-RTHUMBSCREW Must be Purchased Separately
#4-40 ThumbScrew 970-RBLKTSCREW Must be Purchased Separately
#4-40 ThumbScrew 160-000-060R031 Must be Purchased Separately

180° Top Entry D-Sub Backshell

Position

Part #

Material

Data Sheet

IGES

STEP

3D PDF

9 970-009-030R121 Die Cast Nickel
15 970-015-030R121 Die Cast Nickel
25 970-025-030R121 Die Cast Nickel
37 970-037-030R121 Die Cast Nickel
50 970-050-030R121 Die Cast Nickel N/A N/A N/A
9 970-009-040R011 Die Cast Black
15 970-015-040R011 Die Cast Black
25 970-025-040R011 Die Cast Black
37 970-037-040R011 Die Cast Black
9 970-009-020R121 Metalized Plastic
15 970-015-020R121 Metalized Plastic
25 970-025-020R121 Metalized Plastic
37 970-037-020R121 Metalized Plastic
9 970-009-010R011 Black Plastic
15 970-015-010R011 Black Plastic
25 970-025-010R011 Black Plastic
37 970-037-010R011 Black Plastic
