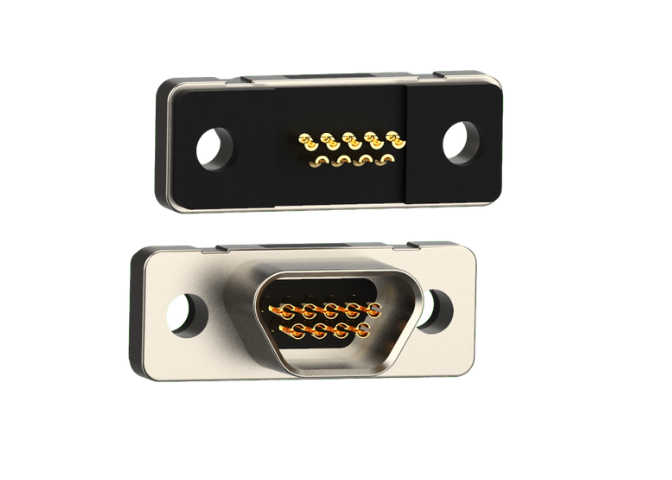

580-M Series Solder Cup

Machined MICRO-D Micro-D

Features

  • Standard Density (9 pos, 15 pos, 25 pos)
  • Non-removable machined contacts for high reliability
  • 2 amp contact rating


Materials

  • Shell: Zinc Alloy, Nickel Plating
  • Insulator: LCP, UL94 V-0
    (260°C process temp)RoHS-LOGO.png
  • Contacts: Machined - Brass
  • Contact Plating: 15u" Gold (30u" Gold Available)
  • Operating Temperature: -40°C to +125°C


Notes

NorComp (380/381/960/CCA) Series VS. (580-M/581-M) Series

NORCOMP MICRO-D CONNECTORS DESIGN FACT SHEET:



Additional Information

Micro-D Panel Cutout: Mating Cycles: Material Declarations:

Mounting Hardware

Part Number

Description

Data Sheet

160-580-CSHRKT1 SHORT CAPTIVE SCREW - CABLE
160-580-CLGRKT1 LONG CAPTIVE SCREW - CABLE
160-580-JSSRKT1 PANEL/PCB SHORT SCREW
160-580-JSLRKT1 PANEL/PCB LONG SCREW

ASSEMBLY INSTRUCTIONS

58Y-M SERIES ASSEMBLY INSTRUCTIONS:

580-M Series Solder Cup

Position

Part #

Gender

Contact

Data Sheet

STEP

3D PDF

9 580-M09-103L001 Male Solder Cup
9 580-M09-203L001 Female Solder Cup
15 580-M15-103L001 Male Solder Cup
15 580-M15-203L001 Female Solder Cup
25 580-M25-103L001 Male Solder Cup
25 580-M25-203L001 Female Solder Cup
