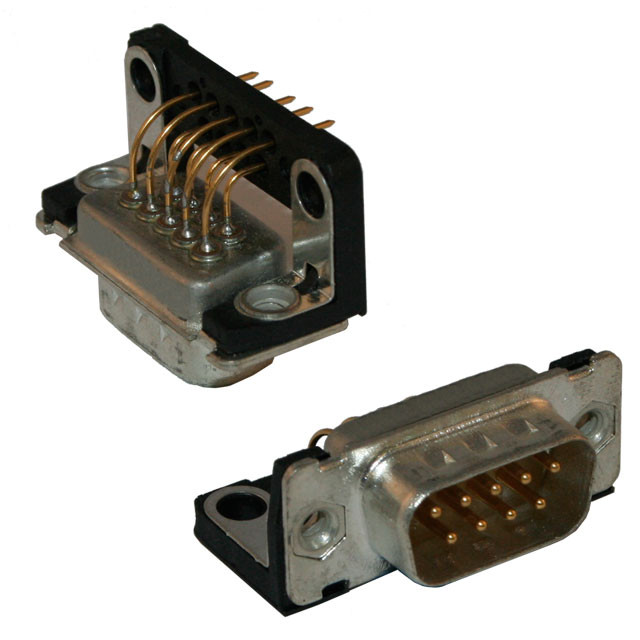

479 Series Right Angle D-Subs Filtered (.318 Footprint)

Name: NorComp
Address: 3810 Shutterfly Rd #200, Charlotte, NC, 28217, US
Telephone: (704) 424-5448

Features

Available in 4 industry sizes/positions (9, 15, 25, 37).
Available in standard .318" footprint.
Individual filtering of each pin.
Tin shells.
Sealed metal rear side.
Tin plated plug shells have indents to provide grounding and additional retention.
Standard capacitor value of 1000 pf. (others available, consult factory)
Rated current: 5 amps DC max.

Materials

Shell: Steel, tin plated
Insulator: Glass-filled thermoplastic, U.L. rated 94V-O
Contacts:
Male pins - Brass
Female pins - Phosphor bronze
Plating: Gold flash on entire contact

Notes

*THIS SERIES IS DISCONTINUED

Right Angle D-Sub Filtered Connectors (.318 Footprint)

Filter

Position

Gender

Type

Position	Part #	Gender	Type
9	479-009-112R001 Order Samples Check Distributor Stock	Male	without Stabilizer Bar
9	479-009-212R001 Order Samples Check Distributor Stock	Female	without Stabilizer Bar
9	479-009-112R581 Order Samples Check Distributor Stock	Male	with Stabilizer Bar
9	479-009-212R581 Order Samples Check Distributor Stock	Female	with Stabilizer Bar
15	479-015-112R001 Order Samples Check Distributor Stock	Male	without Stabilizer Bar
15	479-015-212R001 Order Samples Check Distributor Stock	Female	without Stabilizer Bar
15	479-015-112R581 Order Samples Check Distributor Stock	Male	with Stabilizer Bar
15	479-015-212R581 Order Samples Check Distributor Stock	Female	with Stabilizer Bar
25	479-025-112R001 Order Samples Check Distributor Stock	Male	without Stabilizer Bar
25	479-025-212R001 Order Samples Check Distributor Stock	Female	without Stabilizer Bar
25	479-025-112R581 Order Samples Check Distributor Stock	Male	with Stabilizer Bar
25	479-025-212R581 Order Samples Check Distributor Stock	Male	with Stabilizer Bar
37	479-037-112R001 Order Samples Check Distributor Stock	Male	without Stabilizer Bar
37	479-037-212R001 Order Samples Check Distributor Stock	Female	without Stabilizer Bar
37	479-037-112R581 Order Samples Check Distributor Stock	Male	with Stabilizer Bar
37	479-037-212R581 Order Samples Check Distributor Stock	Female	with Stabilizer Bar
50	479-050-112R001 Order Samples Check Distributor Stock	Male	without Stabilizer Bar
50	479-050-212R001 Order Samples Check Distributor Stock	Female	without Stabilizer Bar
50	479-050-112R581 Order Samples Check Distributor Stock	Male	with Stabilizer Bar
50	479-050-212R581 Order Samples Check Distributor Stock	Female	with Stabilizer Bar
