380 Series MICRO-D Vertical PCB Mount | 0.050"/1.27MM Pitch

Name: NorComp
Address: 3810 Shutterfly Rd #200, Charlotte, NC, 28217, US
Telephone: (704) 424-5448

MICRO-D connectors available in 3 industry standard sizes/positions:
- Standard Density (9 pin, 15 pin, 25 pin)
Micro-miniature size offers economical solutions for commercial applications
Inter-mate-able with commercial Micro-D connectors
Metal interface allows grounding for improved mechanical & electrical shield conditions

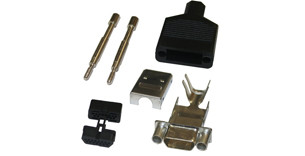

MICRO-D Backshell kit available

Shell: Zn Alloy, Nickel Plated
Insulator: Thermoplastic, UL94V-0
Contacts: Brass // Beryllium Copper
- Exposed female solid barrel contact
  - (Machined Brass)
- Nested male "3-tyne" compression contact
  - (Stamped Beryllium Copper)
Contact Plating:
15u" gold mating area | Bright tin solder tails

Panel Cutout & Assembly Instructions:

Material Declarations:

Mil to COTS

NorComp (380/381/960/CCA) Series VS. (580-M/581-M) Series

NORCOMP MICRO-D CONNECTORS DESIGN FACT SHEET:

Filter

Position

Gender

Position	Part #	Gender	Connector
9	380-009-113L001 Order Samples Check Distributor Stock	Male	MICRO-D Vertical PCB Mount
9	380-009-213L001 Order Samples Check Distributor Stock	Female	MICRO-D Vertical PCB Mount
15	380-015-113L001 Order Samples Check Distributor Stock	Male	MICRO-D Vertical PCB Mount
15	380-015-213L001 Order Samples Check Distributor Stock	Female	MICRO-D Vertical PCB Mount
25	380-025-113L001 Order Samples Check Distributor Stock	Male	MICRO-D Vertical PCB Mount
25	380-025-213L001 Order Samples Check Distributor Stock	Female	MICRO-D Vertical PCB Mount
